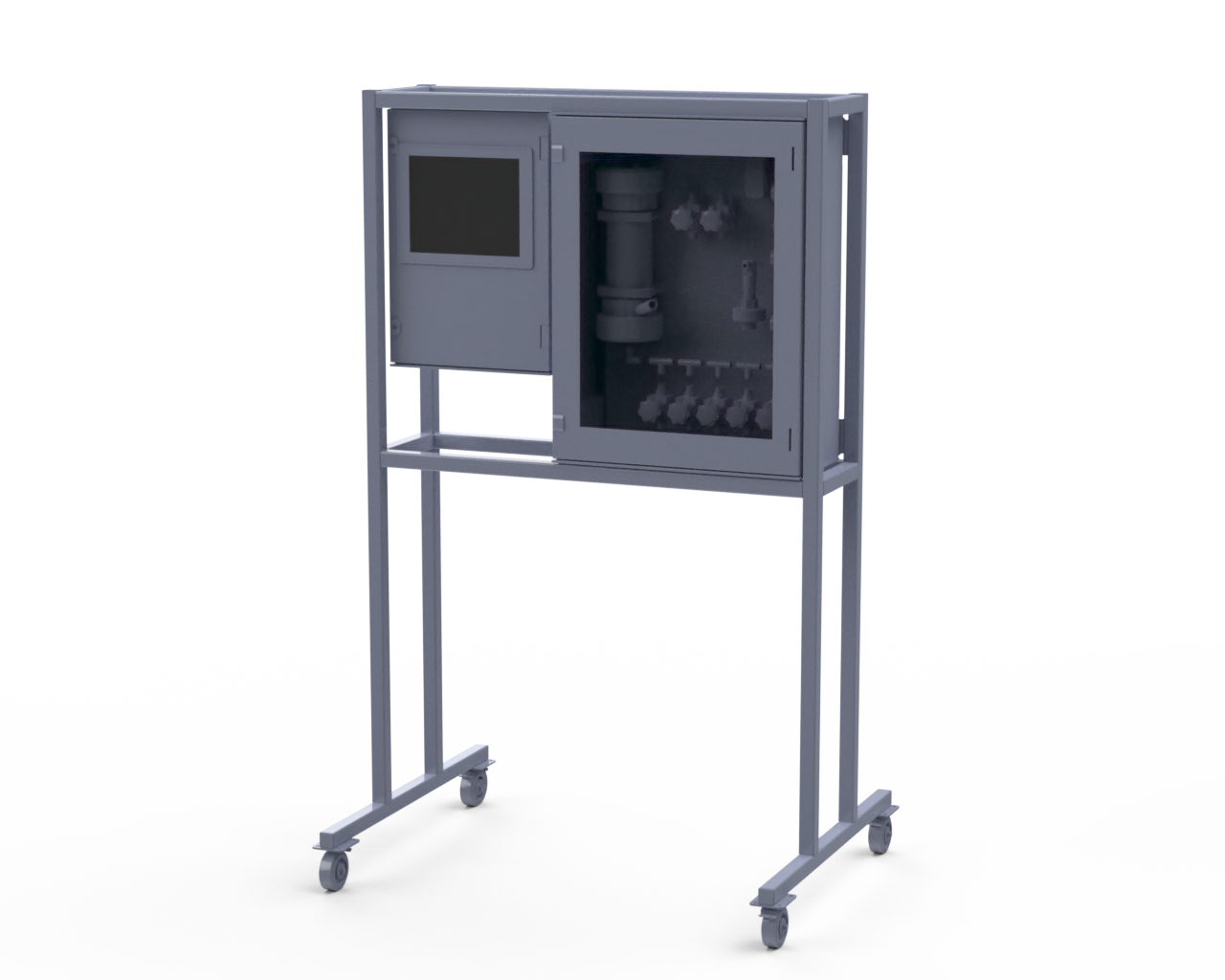

pH System
We develop advanced pH monitoring systems designed for reliable, continuous measurement in challenging slurry and industrial environments. Engineered for process stability and accuracy, the system enables real-time pH control in applications where standard sensors typically struggle.

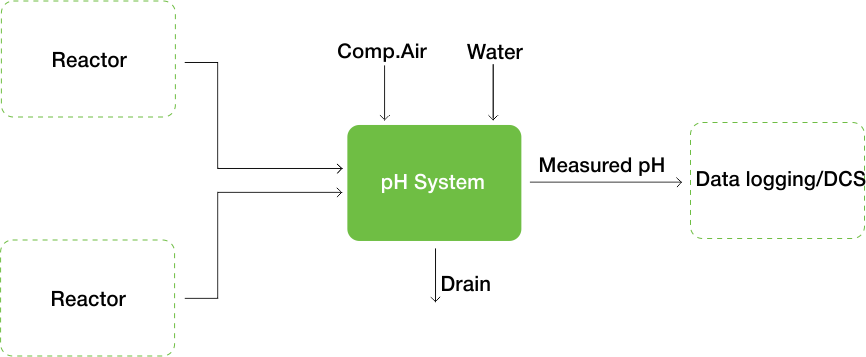

A key advantage of the system is its ability to perform automated sampling and measurement directly from reactors or pipelines, ensuring representative and consistent results without interrupting the process.
The sampled slurry is transferred to a dedicated measurement chamber, where the pH is analyzed and then safely returned to the process. After each cycle, the probe is automatically cleaned, preventing scaling and ensuring long-term stable operation with minimal maintenance.
Designed for demanding applications such as phosphate processing and other corrosive systems, the pH system delivers reliable data, improved process control, and safer operation.
Technical Specifications
| IP rating | IP54 |
| Housing | Polyester reinforced fiberglass |
| Power supply | 110–230 VAC, 50/60 Hz or 24 VDC |
| Outputs | 4–20 mA, MODBUS TCP/IP |
| Dimensions (H × W × D) | 1900 × 1100 × 900 mm |
| Weight | 60 kg |
| Operating temperature | 5–45 °C |
Key Benefits
- Continuous online pH monitoring in slurries
- Reliable operation in harsh and corrosive environments
- Multi-point sampling from reactors or pipelines
- Automatic probe cleaning for scale-free, long-life operation
- Improved process stability and control
- Fully automated system with minimal manual intervention
We provide a complete solution:
- Custom R&D design tailored to your process
- Equipment manufacturing in the EU
- Operator training (on-site at client facilities if needed)
- Adaptation and optimization based on your evolving needs
Contact us to discuss your process requirements. Our team will evaluate your needs and propose a customized system that fits your operation.
