Pilot Installations

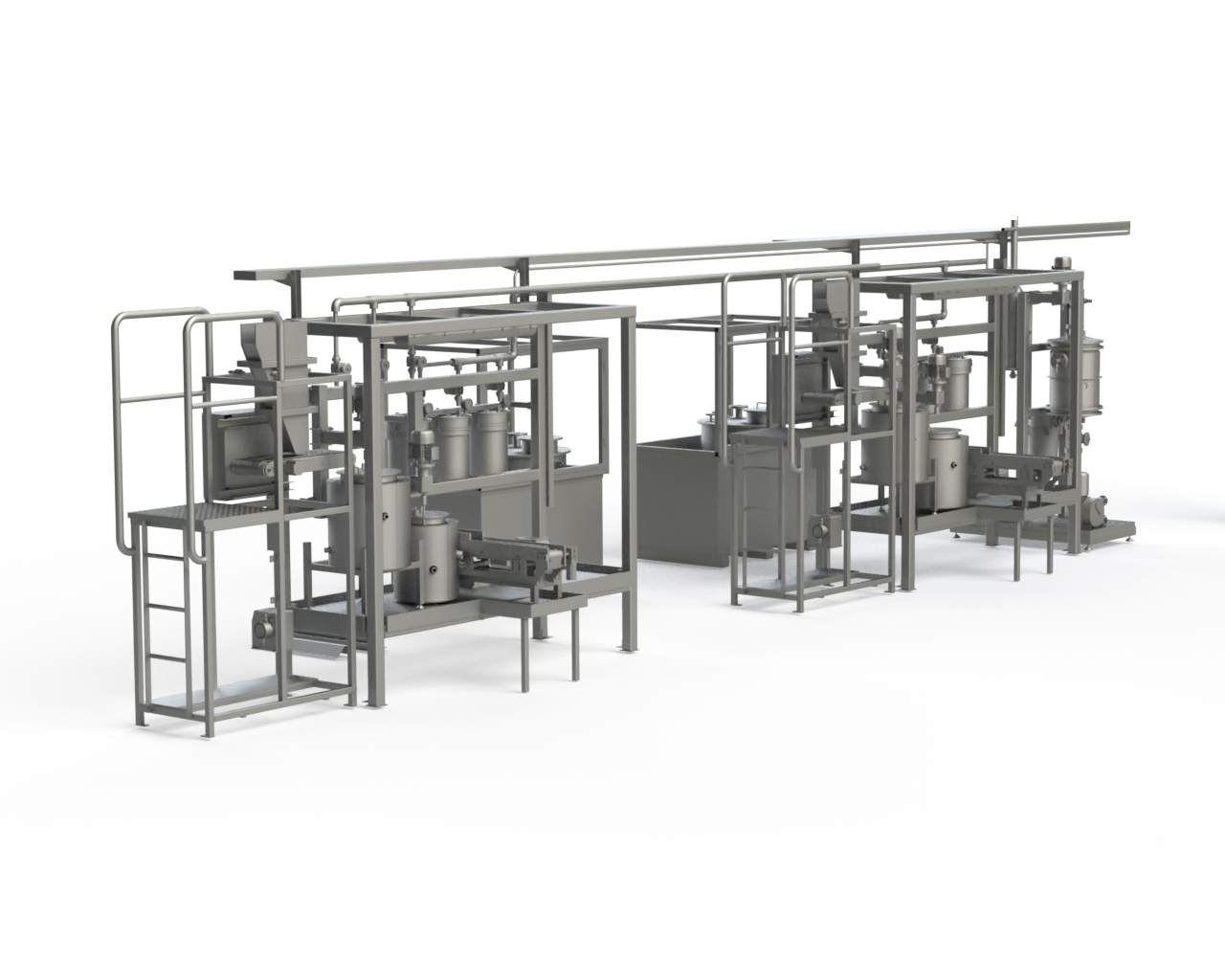

Custom Pilot Equipment
We design and produce non-standard, fully customized pilot equipment for process development, testing, and scale-up. Unlike conventional market solutions, our systems are R&D-driven, highly flexible, and built to adapt to each client’s specific process and objectives.
Our pilot installations are not limited to phosphate rocks. They are designed to work with a wide range of raw materials, processes, and dissolving agents (including different acids and reagents). This flexibility allows our partners to test, optimize, and validate innovative technologies under realistic and controlled conditions.
We also built customizable Purification Pilots with membranes and Ion exchange.
Integrated Equipment Solutions
We develop complete pilot systems by combining a wide range of custom-designed process units, including:
- Reactors – typically from 1 to 50 L (and scalable beyond)
- Solid dosing systems – precise feeding via:
- Weight Belt Conveyors (WBC)
- Weight Screw Conveyors (WSC)
- Decanters – for phase separation
- Evaporators – for concentration and thermal processing
- Liquid separators – ensuring process stability
- Filtration equipment:
- Vacuum filters
- Filter presses
- Membrane systems
- Agitators – optimized for different slurry and process conditions
This modular approach allows each pilot plant to be configured according to the exact process flow and operating requirements.
Flexible Materials of Construction (MOC)
Our equipment is built using materials selected specifically for the process environment, including:
- PE, PP, PVDF, PTFE
- Stainless steel and super duplex steels
- Carbon steel with rubber lining or protective coatings
This ensures safe and reliable operation, even in highly corrosive conditions.
Built for Low Flow Precision
A key strength of Technophos equipment is the ability to operate at very low and stable feed rates, enabling continuous pilot operation starting from 1 kg/h. This level of precision is critical for R&D and process validation and is rarely achievable with standard industrial equipment.
From Concept to Pilot Operation
Technophos provides a complete solution:
- Custom R&D design
- Equipment manufacturing in the EU
- Full process integration and customization
- Adaptation to client-specific materials and requirements
Operator training and support
Key Advantages
- Fully custom-designed, non-standard pilot systems
- Proven experience across multiple processes and industries
- Integrated and modular equipment design
- Suitable for a wide range of raw materials and chemistries
- Reliable low-flow, continuous operation
- Designed for testing, optimisation, and scale-up
Reference Projects
Technophos has successfully designed and delivered a wide range of pilot systems, including:
- HCl Pilot – testing Ecophos process for DCP and phosphoric acid production
(4 modules, capacity: 2 kg/h) - DH Pilot – testing Prayon process for phosphoric acid production
(2 modules, capacity: 5 kg/h) - Pilot Agitation Unit – evaluation of different agitator configurations
- Pilot Vacuum Filter – slurry filterability testing
(capacity: 20 kg/h) - DCP Dryer & Granulator – drying and granulation testing
(capacity: 300 kg/h) - DCP Dryer – drying process validation
(capacity: 50 kg/h) - Ion Exchange Pilot – phosphoric acid purification
(capacity: 50 L/h) - Lab Press Filter – automated filtration tests for different slurries
These projects demonstrate our ability to design tailored solutions across a wide range of processes and capacity levels.
Contact us to discuss your process requirements. Our team will evaluate your needs and propose a customized system that fits your operation.
